AISI 8620 Straight Bevel Gears with Gear Shaping ISO 8-9 Grade Induction Hardened 58-62 HRC

Product Categories

Henan Yizhi Machinery Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: AISI 8620 Straight Bevel Gears with Gear Shaping ISO 89 Grade Induction Hardened 5862 HRC
Brand: YZGEAR
Price: 1300.0 USD

Brand Name : YZGEAR

Model Number : BG22123101

Place of Origin : CHINA

MOQ : 3 Sets

Price : $1300.0/Set

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 200 Sets/Month

Delivery Time : 55 Days

Packaging Details : Plywood Crate

Aplicativo : britador de cone

Proporção : 1:2.5

Adendum : 12.5

Dedendum : 15.625

Modulo : 12.5

Angulo De trabalho : 90°

Contact Now

1) Working angle: 90°

2) Heat treatment of bevel gear

3) Straight bevel gear material

Technical Specifications

Parameter	Specification
Custom Made	Available
Gear Profile Type	Gleason
Manufacturing Process	Gear Shaping
Teeth Grinding	Included
Module (M)	11.5
Number of Teeth (Z)	26/60
Pressure Angle (α)	20°
Lead Angle	Custom
Accuracy Grade	ISO 8-9 Grade
Heat Treatment	Carburizing/Induction Hardending
Surface Hardness	Pinion 58-62 HRC/Gear 50-55 HRC

Steel Code Grades Comparison

CHINA/GB	ISO	ГΟСТ	ASTM	JIS	DIN
45	C45E4	45	1045	S45C	CK45
40Cr	41Cr4	40X	5140	SCr440	41Cr4
20CrMo	18CrMo4	20ХМ	4118	SCM22	25CrMo4
42CrMo	42CrMo4	38XM	4140	SCM440	42CrMo4
20CrMnTi		18XГT		SMK22
20Cr2Ni4		20X2H4A
20CrNiMo	20CrNiMo2	20XHM	8720	SNCM220	21NiCrMo2
40CrNiMoA		40XH2MA/40XHMA	4340	SNCM439	40NiCrMo6/36NiCrMo4
20CrNi2Mo	20NiCrMo7	20XH2MA	4320	SNCM420

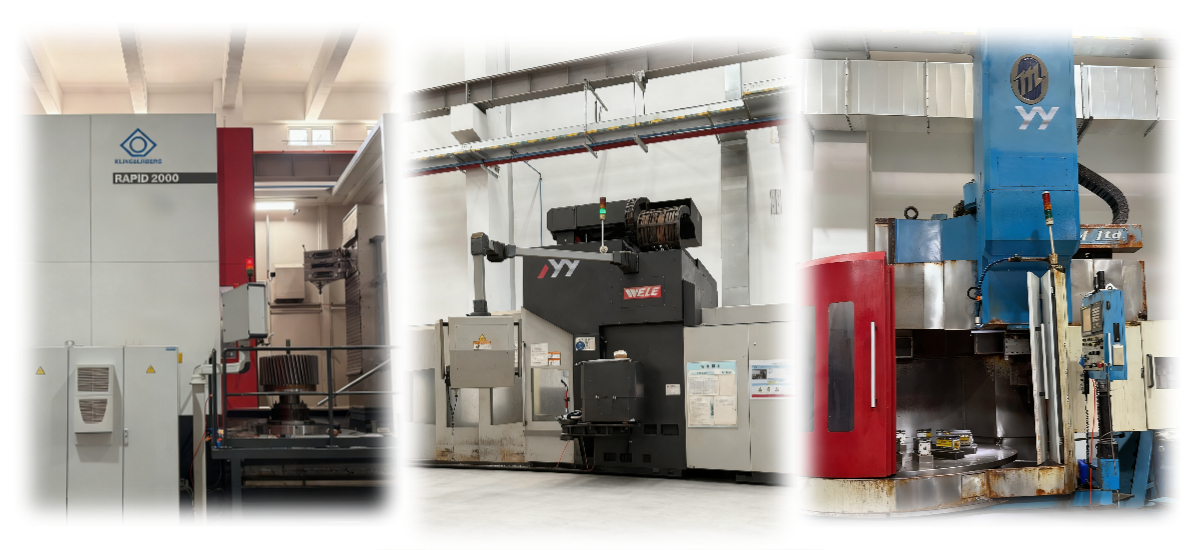

Production Equipment

AISI 8620 Straight Bevel Gears with Gear Shaping ISO 8-9 Grade Induction Hardened 58-62 HRC

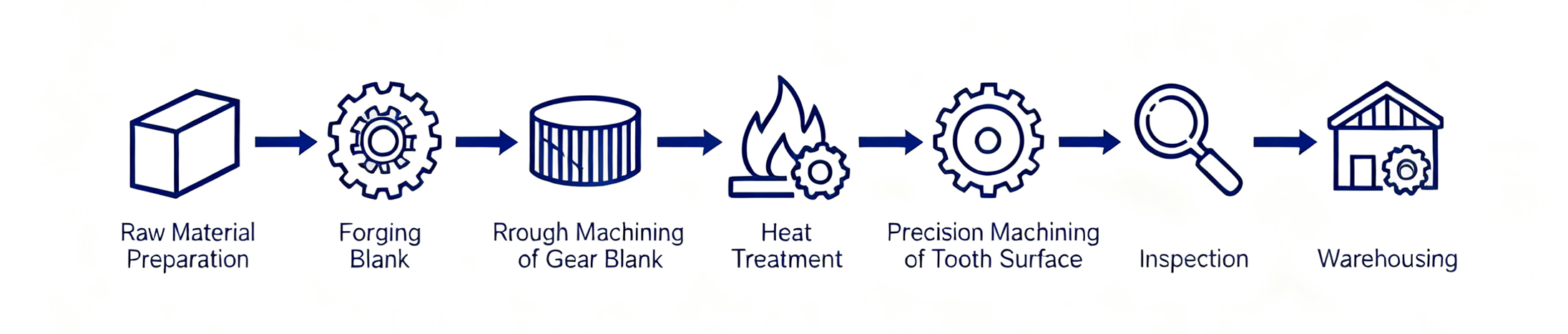

Manufacturing Process

AISI 8620 Straight Bevel Gears with Gear Shaping ISO 8-9 Grade Induction Hardened 58-62 HRC
