Custom Made Straight Sided Spline Gear Shaft AISI 4140 Steel in Drive Applications

Product Categories

Henan Yizhi Machinery Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Custom Made Straight Sided Spline Gear Shaft AISI 4140 Steel in Drive Applications
Brand: YIZGEAR
Price: 150.0 USD

Brand Name : YIZGEAR

Model Number : SS220082301

Place of Origin : CHINA

MOQ : 5 Pieces

Price : $150.0/Piece

Payment Terms : L/C, T/T, Western Union, D/P

Supply Ability : 1000 Pieces/Month

Delivery Time : 55 Days

Packaging Details : Plywood Crate

Manufacturing Process : Spline Grinding

Hardness : 50-55 HRC

Roughness : Ra1.6

Cor hardness : 260-280 HB

Major Diameter : 125mm

Minor Diameter : 112mm

Contact Now

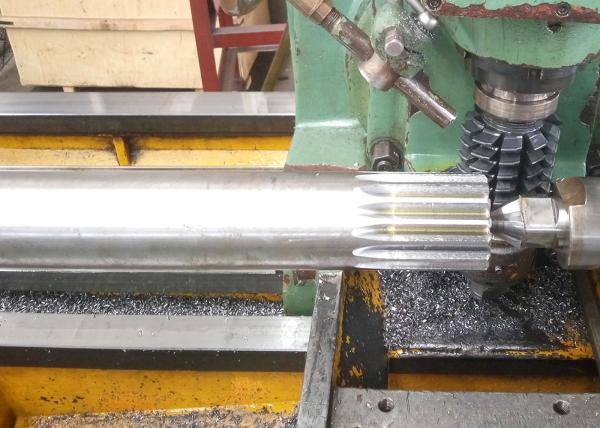

Custom Made AISI 4140 Steel Spline Grinding Straight Sided Spline Shaft

1) Description of Spline shaft

A splined shaft is characterized by the deep grooves, or splines, cut along the entire length of the outer

material. The grooves create jutting keys that fit into paired bearings, bores, gears, or bushings specifically

designed to mate with the shaft splines. When compared with more traditional drive shafts, the added

grooves provide resistance to rotation in anti-rotation applications. They are also used to transmit torque

in both linear and rotary drive applications. In this blog, we discuss the operation, material, manufacture,

and uses of splined shafts.

Products	Rectangular Spline Shafts
Custom Made	√
Gear Profile Type	Spline
Gear Teeth manufacturing	Spline Milling/ Spilne Grinding
Gear Teeth Grinding	√
Module (M)	Custom
Number of Teeth (Z)	Custom
Pressure Angle (α)	30°
Helix Angle (β)
Teeth Accuracy Grade	ISO 6-7 Grade
Heat Treatment	Carburizing
Surface Hardness	58-62 HRC

STEEL CODE GRADES COMPARISON
CHINA/GB	ISO	ГΟСТ	ASTM	JIS	DIN
45	C45E4	45	1045	S45C	CK45
40Cr	41Cr4	40X	5140	SCr440	41Cr4
20CrMo	18CrMo4	20ХМ	4118	SCM22	25CrMo4
42CrMo	42CrMo4	38XM	4140	SCM440	42CrMo4
20CrMnTi		18XГT		SMK22
20Cr2Ni4		20X2H4A
20CrNiMo	20CrNiMo2	20XHM	8720	SNCM220	21NiCrMo2
40CrNiMoA		40XH2MA/ 40XHMA	4340	SNCM439	40NiCrMo6/ 36NiCrMo4
20CrNi2Mo	20NiCrMo7	20XH2MA	4320	SNCM420
